PRIVATE LORA CONNECTIVITY SOLUTION

LoRa Phy RF Modules
& Border Routers

In addition to LoRaWAN, LoRa PHY private network that gives you freedom like no others can, that can be easily connected to our IoT service platform or your own either on the cloud or on premise.

In addition to LoRaWAN, LoRa PHY private network that gives you freedom like no others can, that can be easily connected to our IoT service platform or your own either on the cloud or on premise.

LoRa Phy

How Did It Come About?

Depending on the needs of IoT service, you can choose from endless options to wirelessly connect the Internet of Things. However you must compromise on your priorities. For example, is fast data rate most important for your service? Or long range? How about power consumption or security?

​IoT applications typically communicate small amounts of data. As a trade-off for low bandwidth, LoRa was born to communicate data with energy efficiency, security, and robust signal for long ranges, which makes LoRa the best choice connectivity for IoT applications.

However applications communicating using LoRa technology must use LoRaWAN network, which is public infrastructures built and managed by network operators. This means stability, flexibility, and security of your IoT service will be dependent on the mercy of the network operators. Your data will be shared on the network operator’s servers, and you also have to pay recurring subscription (usage) fees. And LoRaWAN network is not ,always, available in most areas in the USA, and World-Wide.

iotair’s LoRa Phy connectivity solution enables private networks by your OWN gateways. If your priorities are long range, low power consumption, high reliability, and flexible network, we have a perfect solution for you.

FEATURES

  • Independent and flexible private LoRa network
  • Consisting of RF Modules, Border Routers
  • MeshLink to eliminate poor coverage area with ease
  • RF data communication: High signal-to-noise ratio, security, minimum data loss, and interference avoidance.
  • Long rage of miles, not feet
  • Easy connection to pplica platform or to customer’s own via open API
  • Dynamic data rate
  • Arm MBED complient

PRODUCTS

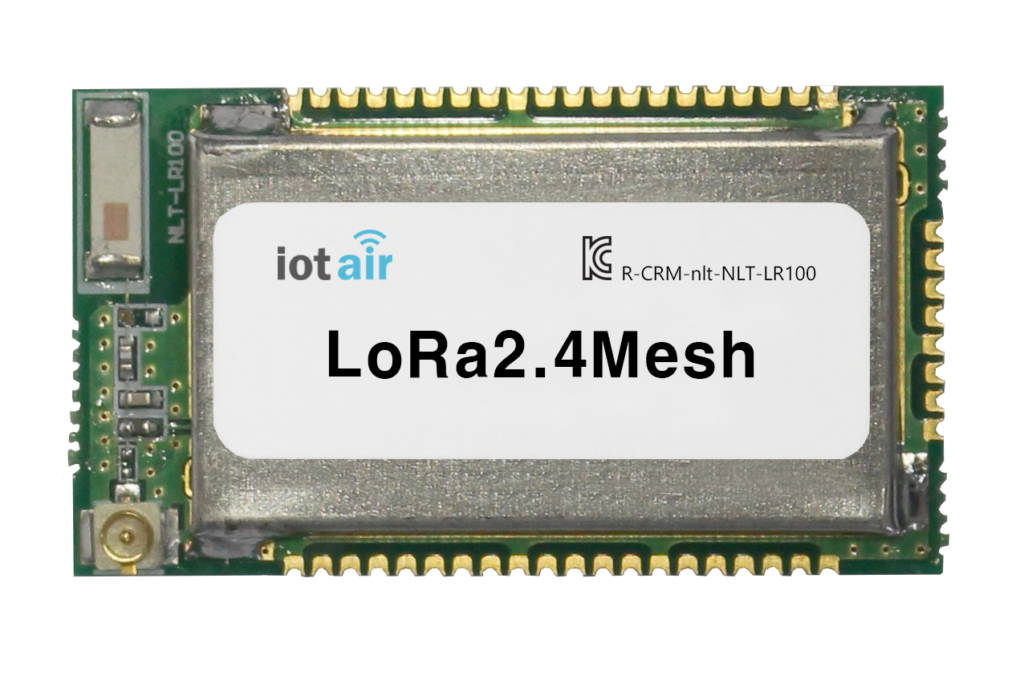

Module
    • ​2.4 GHz LoRa enabled
    • Range up to 2.5 miles
    • Superb indoor penetration
    • High sensitivity, down to -130 dBm
    • +12.5 dBm, high efficiency PA
    • Low energy consumption
    • LoRa, FLRC, support
    • Ranging Engine, Dynamic Data Rate
    • AES-128/256 bit encryption
    • 1MB flash memory, 128KB SRAM
    • Arm® Cortex™-M23 32-bit core
    • TrustZone for Armv8-M architecture
    • ADC x 5, I2C x 2, UART x 2, GPIO x 10 sensor interface available

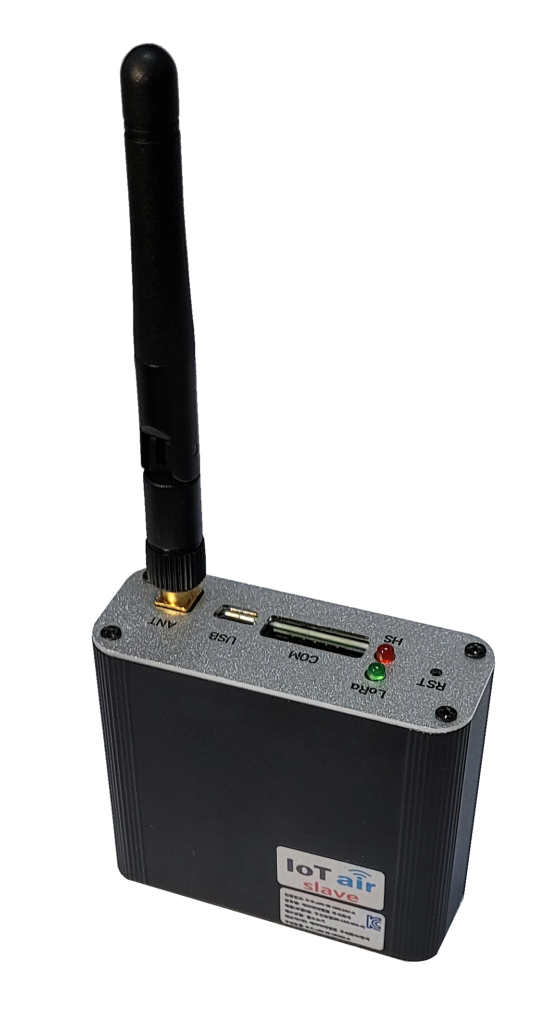

    Modem/MeshLink
    • 1ch. 2.4GHz LoRa transceiver
    • Eliminates poor coverage areas and/or extends coverage
    • ​Advancing communication success rate
    • Mesh Network
    • AES-128/256bit encryption
    • Micro-B USB 1port (DC 5V), UART Data TX/RX
    • Operation Temperature range -20 ~ +70 °C
    • Dimensions: 57 x 71 x 18 mm

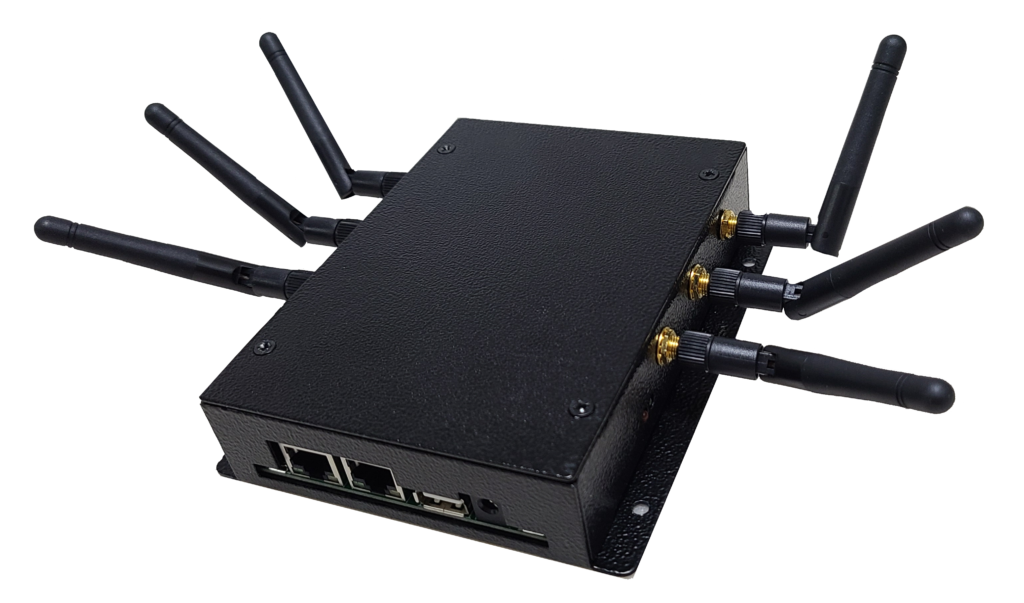

    BorderRouter
    • 6 channel 2.4GHz LoRa enabled
    • 2 ports of RS485
    • 2 Ethernet 10/100 base-T ports
    • 1 micro-B USB port
    • TCP/IP, UDP/IP
    • Star and Mesh Network Topology
    • Network Size : Up to 300 Nodes per 1 channel
    • 99.9% reliability Mesh Network
    • 32-bit ARM926EJ-STM microprocessor core
    • Microprocessor built-in 64MB DDR memory
    • ​Linux Kernel

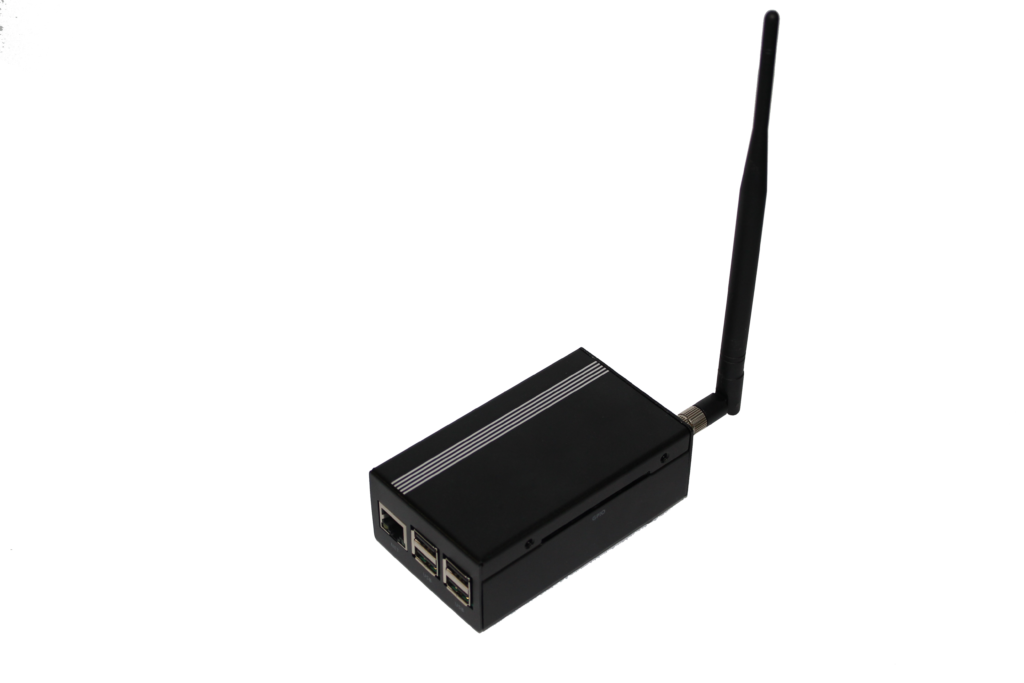

    Evaluation Kit
    • Runs on Linux OS
    • 5-dBi antenna (SMA type)
    • Raspberry Pi 3 model B
    • SoC : BCM2837
    • CPU : Quad Cortex A53 @ 1.2GHz
    • Instruction set : ARMv8-A
    • GPU : 400MHz VideoCore IV
    • RAM : 1GB SDRAM
    • Storage : micro-SD
    • GPIO : 40 pin
    • Interface : 4 Usb B, 1 micro USB b, 1 Ethernet

    WHY IOTAIR?

    Private LoRa Network

    Go true LORA PHY network. Say hello to the freedom of network architecture and operation.  No more worrying about data security and downtime even when Internet connectivity is lost. and surely no limitation to build up your OWN private network.

    Superior Performance

    Boasts the advantages of fast, reliable, and secure RF communication at 2.4 GHz. Extremely long range with a single network that can further be expanded using MeshLink. Optimized bandwidth utilization via dynamic data rate.

    Affordable and Easy

    Easy to implement with self-installation requiring low initial investment. ​No more subscription to the LoRaWAN network thus lower recurring / maintenance cost. Scalable to grow as your service grows using MeshLink.
